STAGE 3

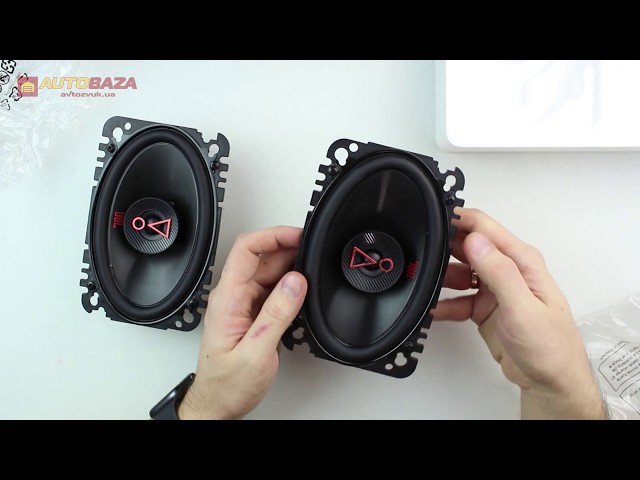

JBL Stage3 6427 4x6" (2-way) coaxial speakers with reliable everyday playback, high sensitivity and 3Ω impedance to leverage the power of the original systems, and a direct upgrade to the 4x6 positions common in several models.
Features
- Plus One™ Polypropylene Cone: Larger cone area for cleaner bass and improved response.
- Edge-Driven Tweeter: More detail and smoothness in high frequencies.
- Sensitivity ~91 dB @2.83V/1m: Clear sound even with a standard head unit.
- 3Ω Impedance: Better fit for agency systems and better utilization of available power.
- Convenient Installation Design: 4" x 6" dimensions are common in dashboard and door/side panel locations.
Technical specifications
- Size: 4x6 inches (100x152 mm)
- Type: Bidirectional Coaxial
- Nominal Power (RMS): 35W
- Peak Power: Up to 175W
- Sensitivity (2.83V/1m): ≈ 91 dB
- Nominal impedance: 3 ohms
- Frequency response: ≈ 75Hz – 20kHz
Product Contents
- Pair of 4x6" speakers (left + right)
- Basic accessories/mounting screws + user manual
- Note: This model often comes without a front grille (depending on the batch)
Common installation locations
- Center of the dashboard or corners of the dashboard: Common in a number of cars (especially some American models).
- Front/Rear Doors: On vehicles with a 4x6 opening.
- Quarter Panels: On some sedans/SUVs.
Tech Complex Technical Team Opinion
Conclusion: The Stage3 6427 is well suited for enhancing clarity in 4x6 in-dash/door locations, works efficiently on the head unit, and does not require an amplifier for everyday use.
- We recommend focusing on the front for the soundstage, while using the rear as a light rear fill to fill the cabin.
- Professional fit with light padding enhances bass quality and reduces resonance.
Official documents from JBL/Harman
- Specification Sheet – Stage3 Series (Includes 6427)
- User/Installation Manual – Stage3 (includes page 6427)
Support and assistance
For technical inquiries, please contact technical support.
