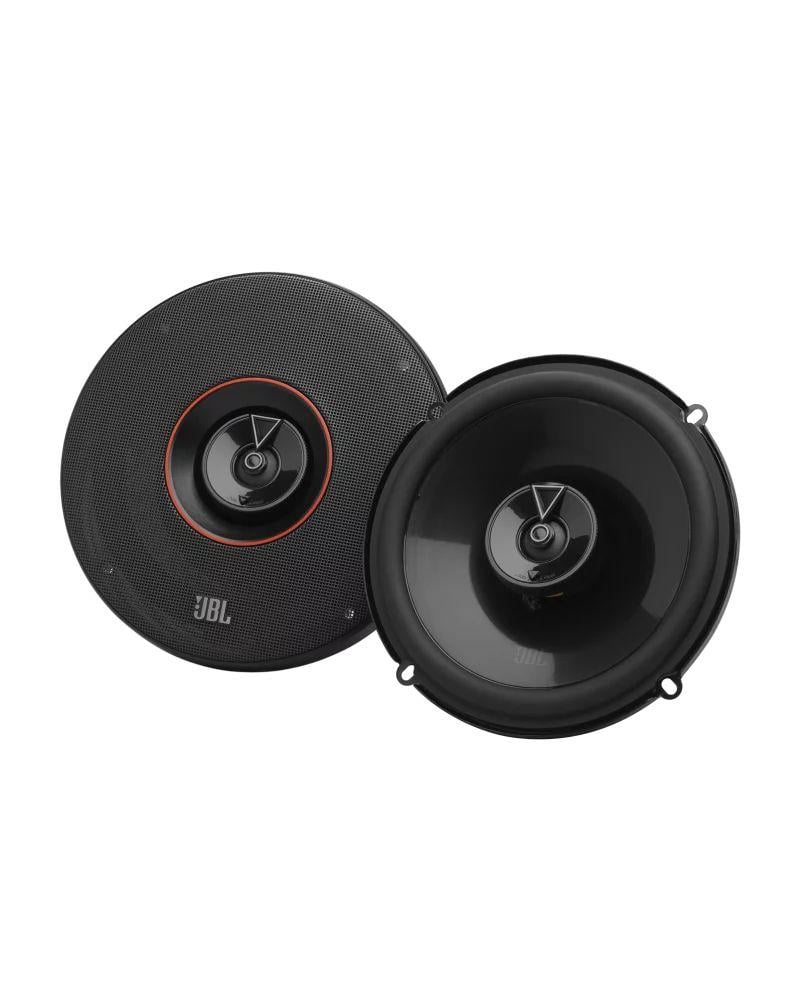

JBL Club 64 – 6.5-inch Car Speakers (2-Way Coaxial)
The Club Series delivers JBL professional performance with high sensitivity and an agency-friendly design. The speaker features a Plus One™ cone made of UV-resistant, damped polypropylene, an edge-driven silk dome tweeter for smooth, high-volume sound, and 0 dB/+3 dB tweeter level adjustment to suit your installation.
Features
- Plus One™ cone for a larger vibration surface and better bass response.
- Edge-Driven Silk Dome tweeter for smoother high-frequency response.
- Adjust tweeter level 0 dB / +3 dB to improve balance depending on location.
- Heat and UV resistant, damped polypropylene to withstand cabin conditions.
- Larger magnets for increased durability.
Technical specifications
Size and Type6.5 in (160 mm), 2-way coaxialNominal Power (RMS)60 watts per speakerPeak Power (Peak)180 watts per speakerSensitivity (@2.83 V)93 dBFrequency Range48 Hz – 21 kHzNominal Impedance3 ohms
Dimensions (according to the engineering drawing)
- Outer diameter: 158.0 mm
- Mounting hole (Cutout): 127.0 mm
- Top-mount depth: 51.5 mm
- Approximate total depth: 69.2 mm
Box Contents
- 2 x Earphones
- 2 x Grilles
- 1 x Foam gasket
- 16 x screw
- 8 x Speed clips
- 2 x Multi-hole plastic adapter rings
- 2 x JBL logo
