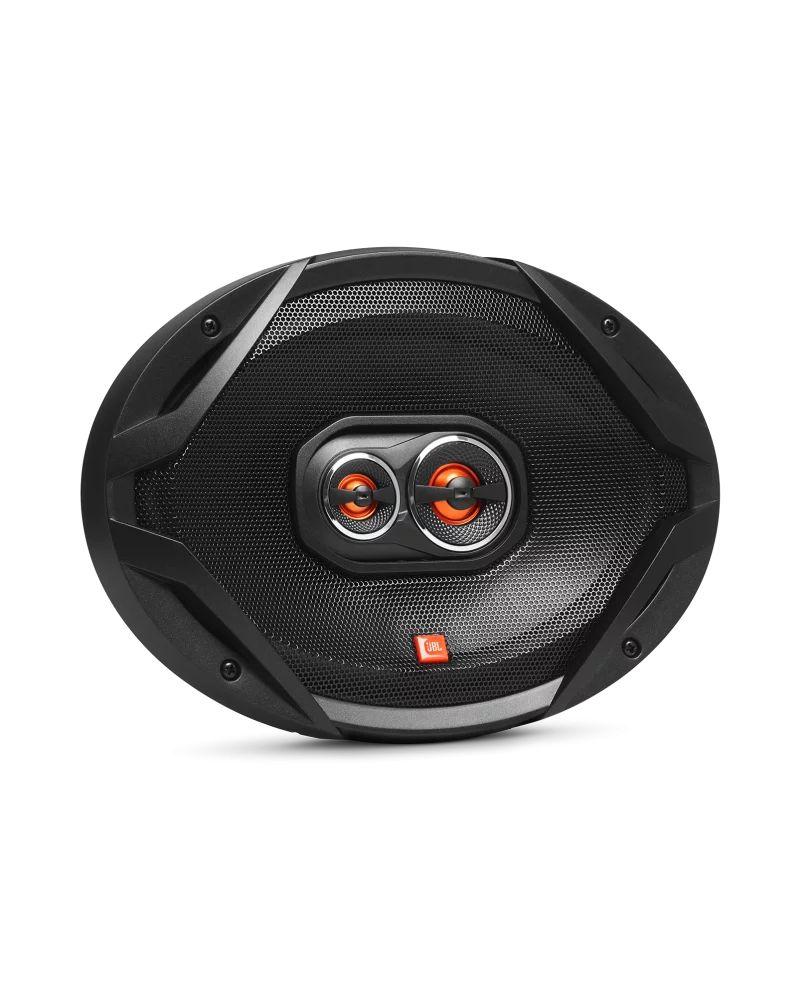

JBL GX9638 Car Speaker

JBL GX9638 – 6x9-inch Car Speakers (3-Way Coaxial)

From the JBL GX Series, designed for installation in 6x9 factory locations without modification. It features Plus One™ polypropylene cone technology for increased sensitivity and bass, an Edge-Driven Soft-Dome tweeter and HARMAN Tweeter Deflector , and a low-impedance (≈2.3Ω DCR) voice coil for higher power extraction—with individual sonic calibration to achieve the well-known JBL signature.

Features

• Plus One™ for larger cone surface area, improved efficiency and bass.
• Edge-Driven Soft-Dome Tweeter for smooth detail and better load capacity.
• Three-Ohm DCR to compensate for factory wiring and extract every available watt.
• HARMAN Tweeter Deflector acts as a waveguide to improve propagation within the cabin.
• Individually Voiced to maintain JBL's signature sound across the series.
• OEM standard reliability tests (freeze/heat/vibration/UV/full power operation).

Technical specifications

Size and Type6 x 9 inch, 3-way coaxialNominal Power (RMS) 100 watts per speakerPeak Power (Peak) 210 watts per speakerSensitivity (@2.83V/1m) 94 dBFrequency Range45 Hz – 21 kHzNominal Impedance 2.3 ohms

Dimensions (according to the engineering drawing)

JBL has not provided the digital mounting dimensions for the GX9638 on the specification sheet. Please refer to the GX Series manual for general mounting guidelines for the 6x9 size.

Box Contents

• 2 x Earphones
• 1 x Gasket Foam Ring/Strap

Official documents from JBL/Harman

• Official GX Series Specifications (Spec Sheet) – Includes GX9638
• GX Series Owner's / Installation Manual
