STAGE 3

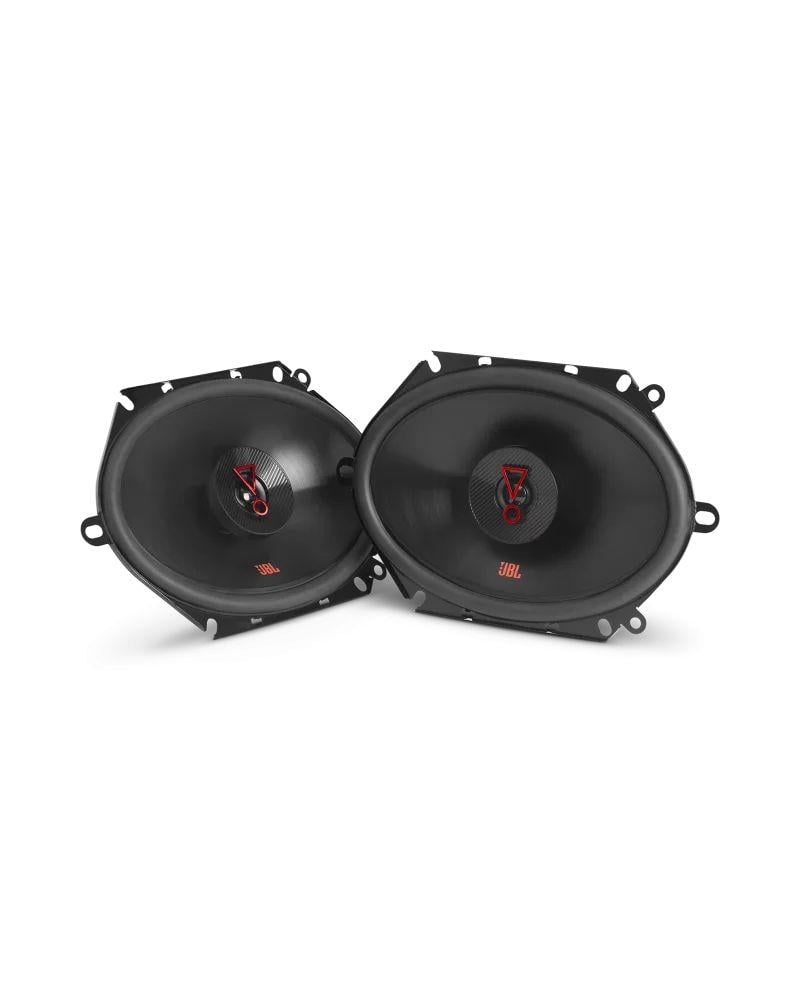

JBL Stage3 8627 – 6x8-inch Car Speakers (2-Way Coaxial)
The JBL Stage3 Series combines patented technologies and superior engineering to deliver powerful performance with excellent compatibility for dealer installations. A 3-ohm design (2Ω high DCR) extracts more power from the source, a Plus One™ cone for a larger vibration surface, a Vented Basket to cool the voice coil and reduce distortion, and sonic tuning that maintains the well-known JBL signature.
Features
- Plus One™ cone for increased effective area and improved bass and efficiency.
- 3 Ohm (2Ω DCR) design to extract every available watt from the recorder/amplifier.
- Engineered to Fit for best fit to factory (dealership) mounting locations.
- Vented Basket for better cooling, higher power capacity and less distortion at high volume.
- Rigorous reliability testing and audio calibration to maintain the JBL signature .
Technical specifications
Size and Type 6 x 8 inches (152 x 203 mm), 2-way coaxial Nominal Power (RMS) 50 watts per speaker Peak Power (Peak) 250 watts per speaker Sensitivity (@2.83V/1m) 93 dB Frequency Range 65 Hz – 20 kHz Nominal Impedance 3 ohms
Dimensions (according to the engineering drawing)
- External dimensions (length x width): 220.0 x 152.0 mm
- Mounting hole (Cutout – long side): 182.6 mm
- Top-mount depth: 50.1 mm
- Approximate total depth: 54.9 mm
Box Contents
- 2 x Earphones
Official documents from JBL/Harman
Support and assistance
For technical inquiries, please contact technical support.
