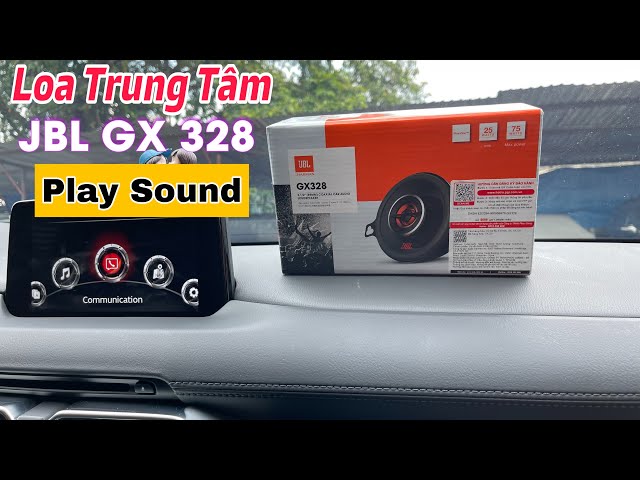

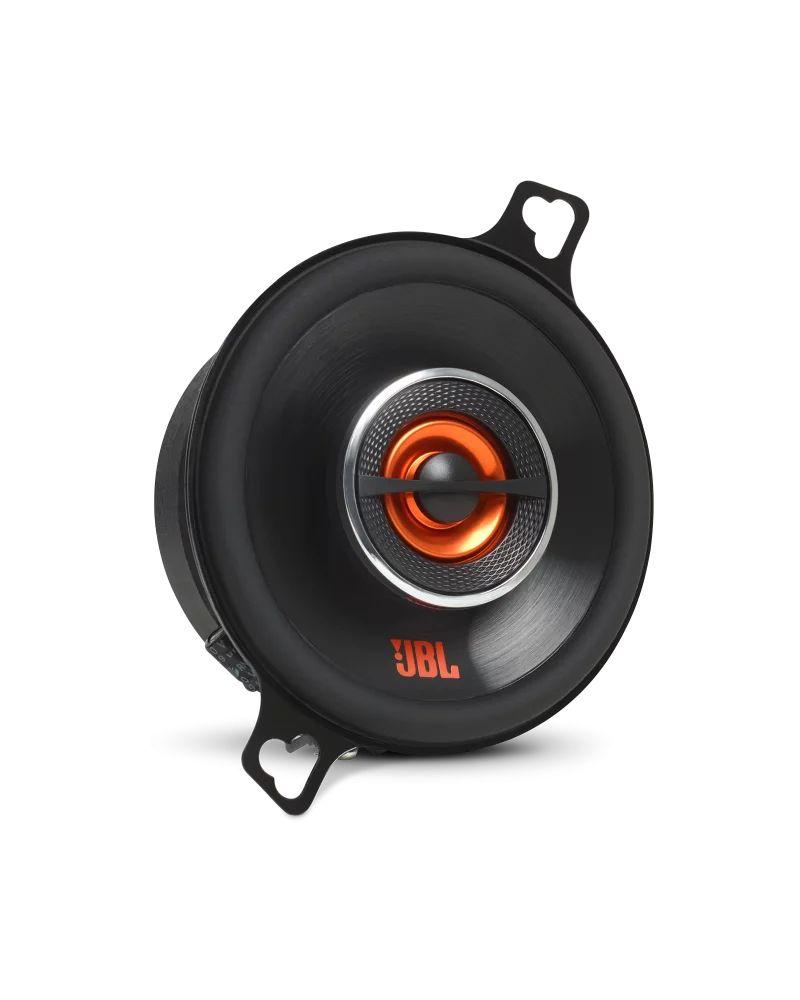

JBL GX328 3.5" (2-way) coaxial GX series speakers feature Plus One® cone technology and a rim-driven silk dome tweeter for enhanced midrange/highs clarity. A direct upgrade option for popular 3.5" dash positions, they work efficiently on the head unit with the option to add an amplifier later if desired.
Features
- Plus One® Cone: Larger vibration area for cleaner bass and better response.
- Edge-Driven Dome: Crisp, smooth details without annoying sharpness.
- High sensitivity (~89 dB @2.83V/1m): Good performance even with average head unit power.
- Low impedance (≈2.3Ω): To make the most of the available power from the original systems.
- EASY INSTALLATION FIT: 3.5" size is common for dashboard locations with basic mounting accessories.
Technical specifications
- Size: 3.5 inches
- Type: Bidirectional Coaxial
- Nominal Power (RMS): 25W
- Peak Power: 75W
- Sensitivity (2.83V/1m): ≈ 89 dB
- Nominal impedance: ≈ 2.3 ohms
- Frequency response: ≈ 90Hz – 21kHz
- Approximate mounting depth (Top-mount): ≈ 1-7/16"
Product Contents
- GX328 (3.5") Headphones Pair
- Foam strips/adhesive gaskets for installation (may vary by batch)
- User Manual and Installation Instructions
Common installation locations
- Center Dash: Acts as a center channel to improve sound positioning in front of the driver and passenger.
- Front Dashboard Corners: In 3.5" Right/Left ports available on some models.
Tech Complex Technical Team Opinion
Conclusion: The JBL GX328 is suitable for enhancing the clarity and focus of sounds in cars that have a 3.5" jack on the dashboard. It works efficiently on the head unit and does not require an amplifier .
- Best Use: As a center channel or a light front-end supplement that emphasizes the mid/high range.
- Best paired with 6.5" door speakers (front/rear) and an optional subwoofer to fill the low range.
